Functionality

• Suitable for the halal slaughters. Used for sheep for ritual slaughtering, Rotation slaughter box is a maximum safety. The machine continens 4 individual boxes attached in drum format to immobilize the sheep for slaughter. Sheep are immobilized in such a way that all animal welfare requirements are met. The different movements of the sheep's fasteners are done with pneumatic cylinders with specific regulation so as not to injure the animals. Entry of the animal through the rear opening of the box. Once inside, the animal is fixed with a side panel that allows adjustment according to the size of the sheep and a back that pushes it, causing the sheep to stick its head out the front of the box where he will be immobilized and then bled. These two panels are driven by a pneumatic cylinder. Front door type guillotine, with upward movement, to hold the animal's neck, operated with pneumatic cylinder. Swing door at the side, actuated by pneumatic cylinder, for the ejection of the animal.

TECHNICAL SPECIFICATIONS

• Capacity: 120 Sheep / hr .
• Material: Stainless steel or Galvanized Hot-Dip (St-37).
• Power: 1,5 kW.
• Cylinder:: Pneumatic
• Pressure: 6 – 8 bar

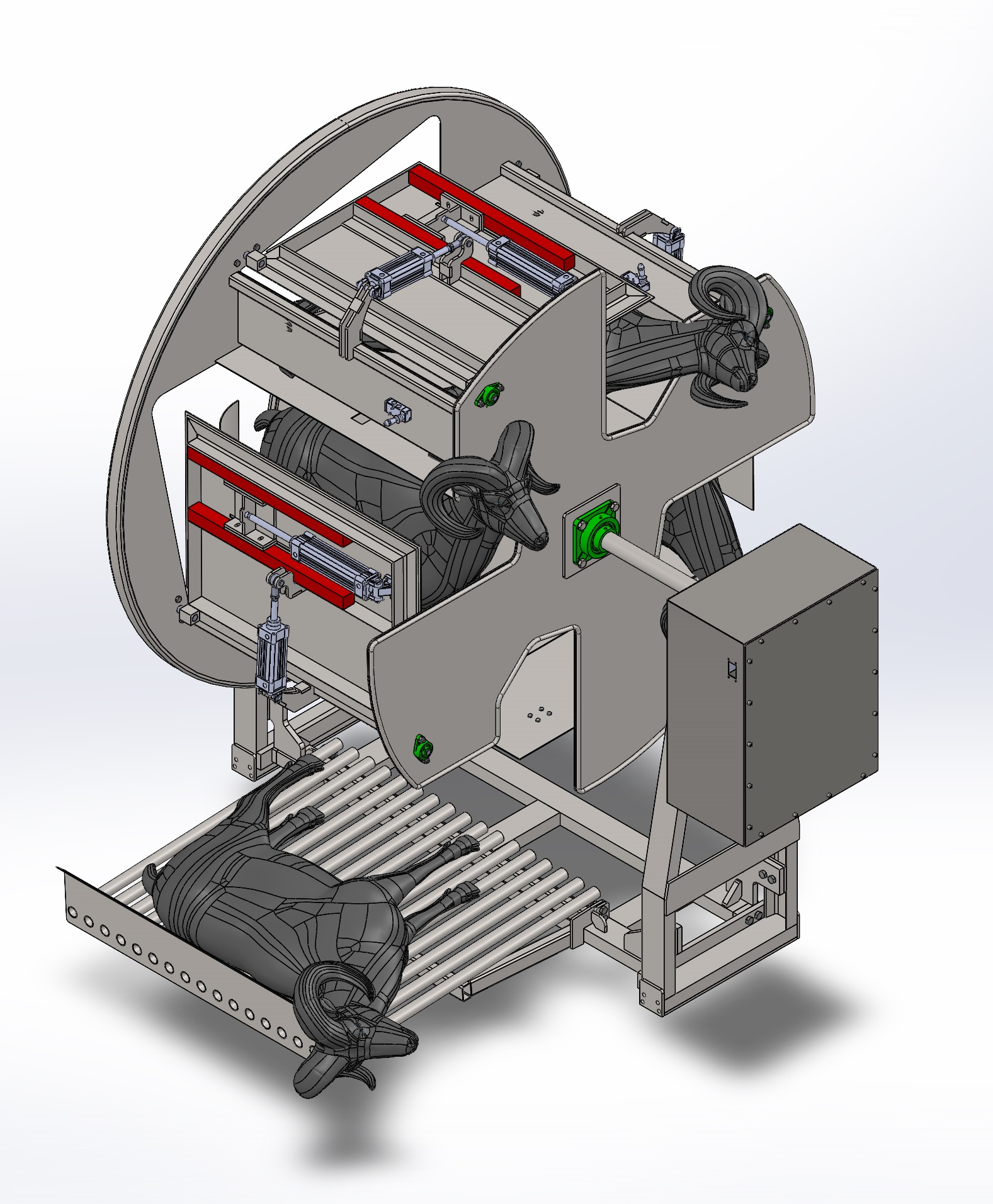

Product Pictures:
